Putting a Ford F-250 into 4-wheel drive depends on the truck's 4WD system and model year. Most 4x4 Super Duty models use an electronic transfer-case selector, although some configurations use a floor-mounted lever.
This guide covers 2H, 4H, and 4L, explains when to use each setting, and provides troubleshooting steps if the truck won't engage 4WD.
Important: Only use 4WD settings appropriate for the driving conditions and your truck's configuration. On dry, high-traction pavement, 4WD modes that lock the front and rear driveline together can cause driveline binding and potentially damage components.
Ford F-250 4WD Settings Explained
Before changing modes, it helps to understand what each setting does.
2H — Two-Wheel Drive, High Range
2H is the normal driving mode.
Use 2H for:
- Dry pavement
- Normal highway driving
- City driving
- Dry gravel roads
- Normal towing conditions
In 2H, power is primarily delivered to the rear wheels.
4H — Four-Wheel Drive, High Range
4H sends power to both the front and rear axles for additional traction.
Use 4H for conditions such as:
- Snow
- Ice
- Mud
- Sand
- Loose gravel
- Slippery trails
- Other low-traction surfaces
Avoid using 4H continuously on dry pavement unless your specific Ford system is designed to permit that operation.
4L — Four-Wheel Drive, Low Range
4L provides significantly greater torque at the wheels at low speeds.
Use 4L for difficult conditions such as:
- Deep mud
- Deep sand
- Steep climbs
- Steep descents
- Rock crawling
- Heavy off-road terrain
- Pulling through particularly difficult terrain
4L is not intended for normal road driving.
How to Put a Ford F-250 in 4H
For an F-250 equipped with an electronic 4WD selector:
Step 1: Slow Down
Reduce your speed before selecting 4H, particularly if road conditions are slippery.

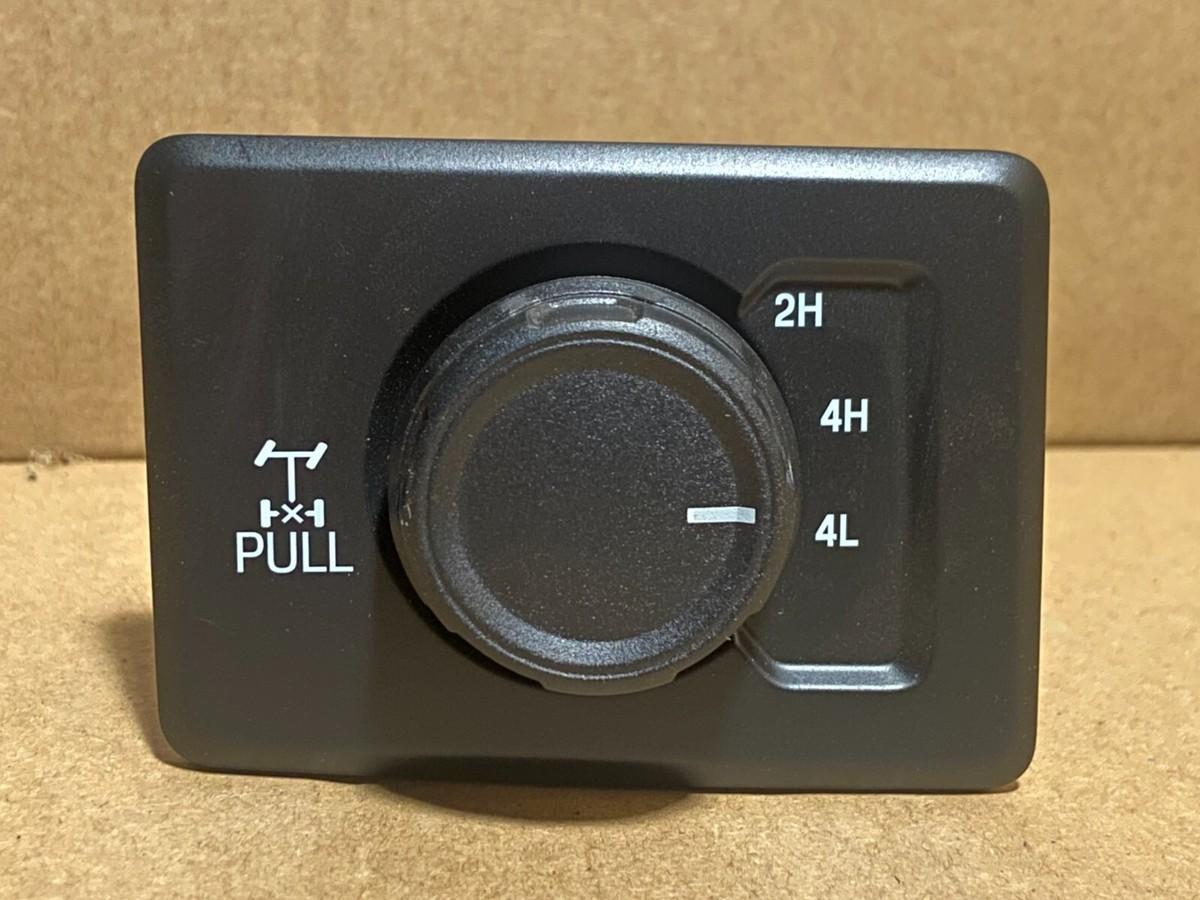

Step 2: Locate the 4WD Controls
Depending on the F-250 model year and configuration, you may have a rotary dial, buttons, or another electronic selector.
Look for:
2H — 4H — 4L
Step 3: Select 4H
Turn or press the selector to:
4H
The instrument cluster should display a 4WD indication.
Step 4: Wait for Engagement
The transfer case and front axle may take a short amount of time to engage.
Continue driving carefully while the system completes the shift.
Step 5: Confirm 4WD
Look at the instrument cluster for the 4x4/4WD indicator.
Once the indicator confirms the selected mode, the truck is ready to continue driving in 4H.
How to Put a Ford F-250 in 4L
4L requires a more deliberate procedure because low range is intended for very low-speed operation.
Step 1: Bring the Truck to a Stop
Stop the F-250 completely.
Step 2: Keep Your Foot on the Brake
Apply the brake before selecting low range.
Step 3: Shift the Transmission Into Neutral
Move the transmission selector to:
N — Neutral
Do not attempt to shift into 4L while driving at normal road speed.
Step 4: Select 4L
Use the electronic 4WD control to select:
4L
Step 5: Wait for Engagement
The transfer case may take several seconds to complete the shift.
Watch the instrument cluster for the 4L indication.
Step 6: Shift Into the Appropriate Gear
Once 4L has engaged, select the appropriate transmission gear and proceed slowly.
Use gentle throttle inputs and avoid unnecessary wheelspin.
How to Return a Ford F-250 From 4L to 2H
When you're finished using low range:
- Bring the truck to a complete stop.
- Keep your foot on the brake.
- Shift the transmission into Neutral.
- Select 2H.
- Wait for the 4WD system to disengage.
- Confirm the 4WD indicator has changed.
- Shift into the appropriate transmission gear.
- Resume normal driving.
Do not immediately accelerate aggressively while the transfer case is completing the shift.
How to Switch From 4H Back to 2H
In many F-250 configurations, you can shift between 2H and 4H while moving, provided you're traveling under the speed limits specified in the owner's manual and road conditions are appropriate.
A typical procedure is:
- Release the accelerator.
- Select 2H.
- Allow the transfer case to complete the shift.
- Confirm the 4WD indicator changes.
- Resume normal driving.
The exact procedure and allowable speed can vary by model year, transfer case, and drivetrain configuration, so consult the owner's manual for your specific truck.
What If the F-250 Won't Go Into 4WD?
If you select 4H or 4L and the system doesn't engage, don't repeatedly force the selector.
Check the following.
1. Check the Dashboard
Look for a flashing 4WD indicator.
A flashing light can indicate that the system is still attempting to complete the shift or that a fault has occurred.
2. Check the Transmission Position
For 4L, make sure the transmission is in Neutral and the truck is stopped.
3. Try 4H First
If you're having difficulty getting into 4L, select 4H first and verify that 4H engages properly.
4. Check the Battery
Electronic 4WD systems depend on proper electrical power.
A weak battery or electrical problem can sometimes cause 4WD engagement problems.
5. Look for Warning Messages
Check the instrument cluster for messages such as:
- 4WD fault
- Check 4x4
- Shift delayed
- 4x4 unavailable
A warning message may require diagnosis before the system can operate normally.
Ford F-250 4WD Troubleshooting
If 4WD continues to malfunction, possible causes include:
- Transfer-case actuator problems
- Front axle engagement problems
- Electrical faults
- Wiring problems
- Faulty 4WD selector
- Transfer-case problems
- Low battery voltage
- Incorrect operating procedure
- Mechanical drivetrain problems
If the truck repeatedly refuses to engage 4WD or displays a 4WD fault, have the system diagnosed rather than repeatedly attempting to force engagement.
Can You Drive an F-250 in 4H on Dry Pavement?
Generally, do not use a part-time 4WD mode on dry, high-traction pavement unless Ford specifically states that the particular system permits it.
When the front and rear driveline components are mechanically coupled, differences in front and rear wheel speed can create driveline wind-up.
Symptoms can include:
- Difficult steering
- Tire scrubbing
- Binding
- Hopping during tight turns
- Difficulty shifting out of 4WD
Use 2H for normal dry pavement unless your specific F-250's owner's manual says otherwise.
When Should You Use 4H vs. 4L?
| Driving Condition | Recommended Setting |
|---|---|
| Dry highway | 2H |
| Dry city streets | 2H |
| Wet pavement | Usually 2H |
| Snow-covered road | 4H |
| Icy/low-traction surface | 4H |
| Mud | 4H or 4L |
| Deep sand | 4L may be appropriate |
| Steep trail | 4L |
| Rock crawling | 4L |
| Very steep descent | 4L |
| Normal towing on pavement | 2H |
The correct setting ultimately depends on the terrain, traction, truck configuration, and Ford's instructions for that model year.
Tips for Using 4WD in an F-250
Don't Wait Until You're Completely Stuck
If you know you're approaching snow, mud, sand, or another low-traction area, select the appropriate 4WD mode before becoming immobilized.
Use Low Range Carefully
4L provides substantial torque at low speeds. Apply the throttle gradually.
Avoid Excessive Wheelspin
Spinning all four wheels can still result in loss of control and can place significant stress on drivetrain components.
Don't Use 4L for Highway Driving
Low range is intended for slow-speed situations requiring additional torque and control.
Follow the Owner's Manual
Ford has used different transfer cases and 4WD systems across F-250 generations. The exact engagement procedure, allowable speeds, and available modes can differ.
Frequently Asked Questions
How do I put my F-250 into 4-wheel drive?
For most electronically controlled F-250 4x4 models, select 4H using the 4WD control. For 4L, stop the truck, shift the transmission into Neutral, and select 4L. Wait for the dashboard indicator to confirm engagement.
Can I switch an F-250 from 2H to 4H while driving?
Many F-250 models allow shifting between 2H and 4H while moving within specified speed limits. Check the owner's manual for your specific model year before doing so.
Does the F-250 need to be stopped for 4H?
Not necessarily. Many systems permit 2H-to-4H shifting while moving. 4L generally requires the truck to be stopped and the transmission in Neutral.
Why is my F-250 4WD light flashing?
A flashing 4WD indicator can mean the system has not completed the shift or has detected a problem. If it continues flashing or a warning message appears, consult the owner's manual and have the system diagnosed if necessary.
What does 4L mean on an F-250?
4L means four-wheel drive low range. It provides increased torque and reduced vehicle speed for difficult off-road conditions.
Should I leave my F-250 in 4H all the time?
No. For a conventional part-time 4WD system, 2H is generally the appropriate setting for normal dry-road driving.
Final Takeaway
For most Ford F-250 4x4 trucks, the basic process is simple: use 2H for normal driving, 4H for slippery or loose surfaces, and 4L for slow, demanding off-road conditions. The exact shifting procedure varies between F-250 model years and transfer-case configurations, so always verify the instructions for your particular truck before using 4WD.
